The IEC Standard That’s Costing Wind Farms Millions (And the Industrial Fix That Already Exists)

How proven industrial technology exposed a fundamental flaw in wind turbine lightning protection – and what every wind professional needs to know about it

The Phone Call That Unintentionally Created a Case Study

This scene plays out in O&M buildings across the US from March through November; it starts when an early-morning call comes into the operations center of a large wind farm.

“We’ve got more lightning damage,” the site supervisor reports. “CAT 4 damage, about 15 meters down from the tip. That’s the third one this month.”

“We need to shut it down and call a ropes team.”

When the O&M supervisor pulls up the damage reports from the past year, something doesn’t add up. According to IEC 61400-24 standards – the international specification that governs wind turbine lightning protection – nearly all lightning damage should occur within 2 meters of the blade tip.

But the operational data tells a different story entirely.

The Multi-Million Dollar Problem Nobody’s Talking About

Often, when operators investigate their lightning blade damage, what they find in their data runs contrary to what the experts predict. This is why Weather Guard collects real lightning data from the field.

The examples cited in this study were documented on eight sites in Texas and Oklahoma that we monitored in the summer of 2024. Their GE Vernova turbines, equipped with the industry-standard (IEC standard LPL1 certified) LPS system, had experienced damage patterns that completely contradicted engineering specifications. According to the standards:

• 71-99% of damage is expected to be seen within 2 meters of the blade tip
• Only 4% of damage will occur beyond 10 meters from the tip

Here’s what was actually happening:

• Only 45.6% of damage was within 2 meters of tip
• 28.5% of damage occurred between 2 and 10 meters from the tip, and
• 25.9% of damage beyond 10 meters from the tip

That’s a massive increase in the most expensive type of damage, impacting spar caps and shear webs that require $150,000 repairs and months of unanticipated downtime.

What the operations team was seeing wasn’t unusual. Across the industry, wind professionals see the same disturbing patterns, but few understand what the data really shows – and it’s an expensive problem.

How Aerospace Engineers Fixed the Same Problem

While wind turbine manufacturers currently struggle with this problem, aerospace engineers already solved it in other critical applications. Major airplane manufacturers including Boeing, Airbus, Gulfstream, and Embraer have been using an advanced lightning protection solution for years with proven results.

The “secret” solution? StrikeTape Lightning Diverters.

Instead of trying to force lightning to attach at specific points (the wind turbine approach), aerospace engineers guide lightning energy along controlled pathways that protect critical structures.

That’s exactly what StrikeTape does. The same technology that’s proven in aerospace applications has been adapted to provide the same protection for wind turbine blades.

The Study That Shook the Industry

When RWE, the German energy giant, decided to test StrikeTape at one of their US wind farms, they unknowingly initiated one of the most important lightning protection studies in wind energy history.

In 2024, Weather Guard analyzed operational data from eight wind farms across Texas and Oklahoma – all using GE Vernova turbines, all in similar lightning-prone environments. Seven farms used the industry-standard GE Vernova SafeReceptor ILPS protection. One farm in West Texas applied StrikeTape to drive lightning towards the GE Vernova receptor system.

The results were stunning.

StrikeTape-protected site:

• 74 lightning events
• 3 damage incidents
• 4.0% damage rate

Seven conventionally-equipped farms:

• 2,038 lightning events
• 415 damage incidents
• 20.4% average damage rate

StrikeTape achieved an 80.4% reduction in lightning damage compared to the seven nearby wind farms.

While the collected data is dramatic enough to be surprising, the results make sense considering how traditional lightning protection for wind turbines is designed, and why it doesn’t work the way it should.

Why Traditional Lightning Protection Is Fundamentally Flawed

To understand why this matters, let’s walk through how wind turbine lightning protection was developed, and how it currently works.

The SafeReceptor ILPS system, installed on virtually every LM Wind Power blade since 2011, uses a two-receptor approach. The idea is simple: attract lightning to specific points on the blade tip, then conduct the energy safely to ground through insulated pathways. The theory, on paper, is brilliant.

The standard system is:

• IEC61400-24 Level 1 certified
• Validated by Germanischer Lloyd

• Designed from the results of 90,000+ lightning-protected blades
• Ideally ILPS would intercept >98% of lightning strikes
• Withstands 200kA strikes

In reality, it’s fallen short. Spectacularly.

Why Traditional Lightning Protection Is Fundamentally Flawed

To understand why this matters, let’s walk through how wind turbine lightning protection was developed, and how it currently works.

The SafeReceptor ILPS system, installed on virtually every LM Wind Power blade since 2011, uses a two-receptor approach. The idea is simple: attract lightning to specific points on the blade tip, then conduct the energy safely to ground through insulated pathways. The theory, on paper, is brilliant.

The standard system is:

• IEC61400-24 Level 1 certified
• Validated by Germanischer Lloyd
• Designed from the results of 90,000+ lightning-protected blades
• Ideally ILPS would intercept >98% of lightning strikes
• Withstands 200kA strikes

In reality, it’s fallen short. Spectacularly.

The problem isn’t that the system doesn’t work – it’s that it’s optimized for the wrong type of lightning. Independent research using eologix-ping lightning strike sensors on wind turbines reveals something shocking:

Lightning strikes that cause damage average only -14kA.

These lower-amplitude strikes slip past traditional protection systems and hit blades in structurally critical areas far from the intended attachment points. These strikes cause damage that “doesn’t fit” the type we expect to see, but in fact, makes perfect sense – and costs the industry millions.

The $2.4 Million Math Problem

Let’s talk about what this means in dollars and cents.

Traditional Lightning Protection (Industry Average):

• Damage rate: 20.4% of lightning events
• Average cost per incident: $160,000 (repair + downtime)
• For 100 lightning events: $3,264,000 in damage costs

StrikeTape Protection (RWE Sand Bluff Performance):

• Damage rate: 4.0% of lightning events
• Average cost per incident: $160,000
• For 100 lightning events: $640,000 in damage costs

Net savings: $2,624,000 per 100 lightning events

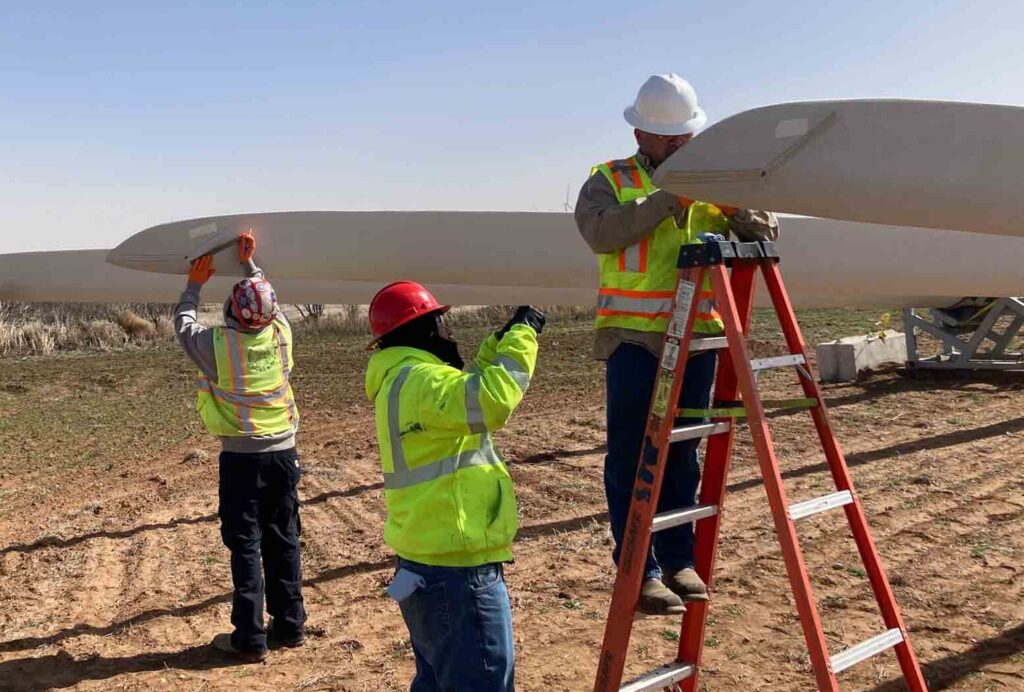

And here’s the kicker: StrikeTape installs in just 15-30 minutes per blade, requiring no special equipment. It doesn’t void warranties, and regulatory approval is not required.

Field-Proven Success

StrikeTape isn’t an experimental technology; it’s based on lightning protection systems that have proven effective in critical industrial applications.

How StrikeTape Works

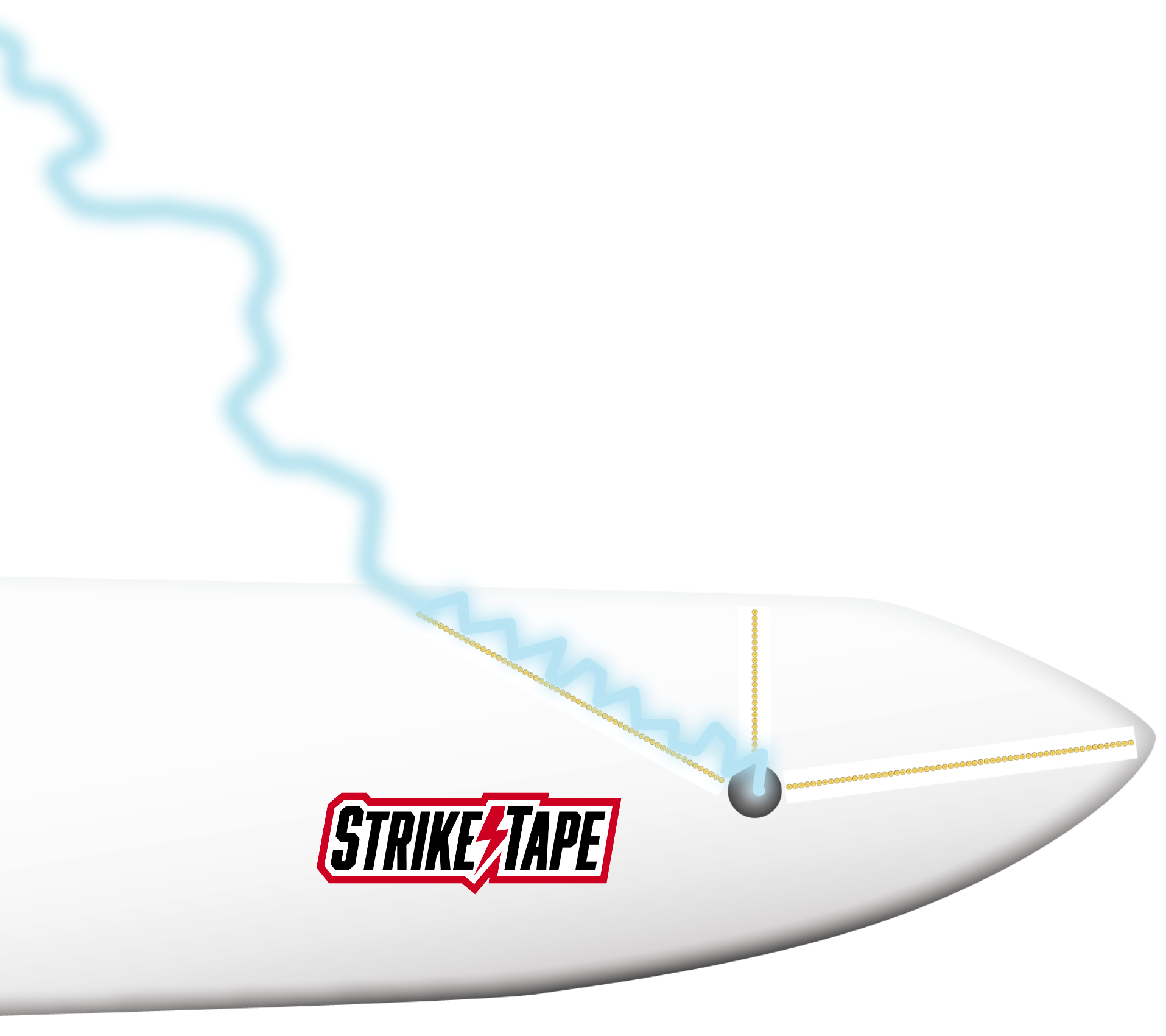

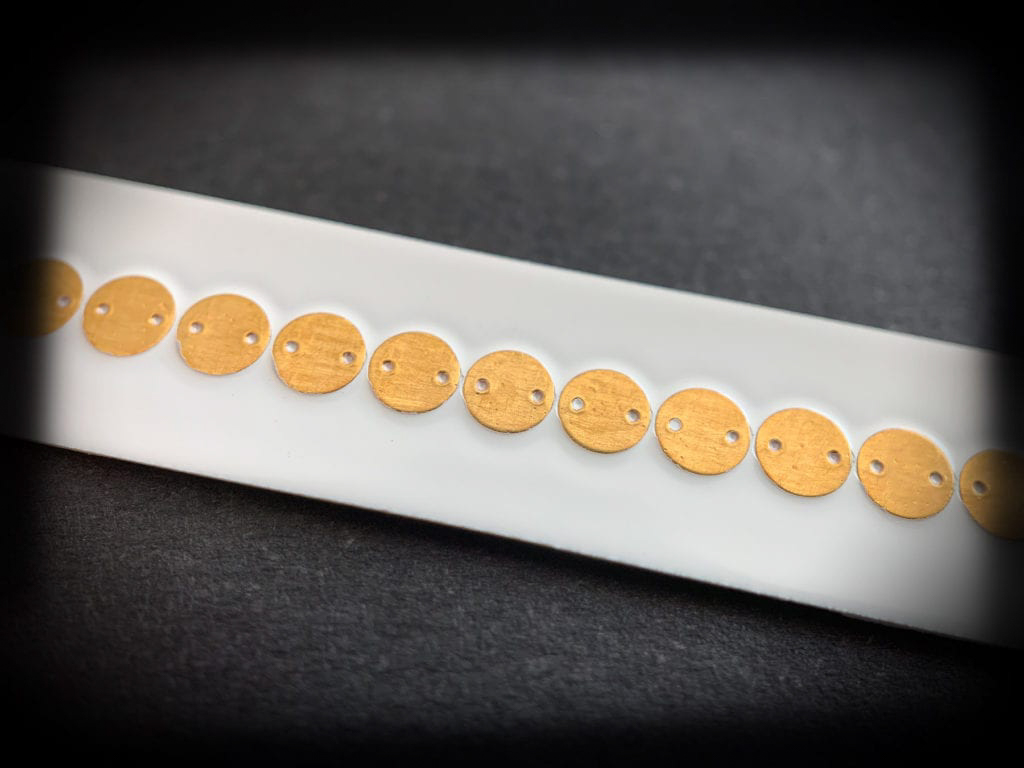

Segmented lightning diverters like StrikeTape consist of a series of small metal segments mounted on a flexible, non-conductive substrate with small gaps between each segment. When lightning approaches, the diverter creates an ionized channel in the air above the surface. This channel provides a preferred path for lightning, directing it safely toward the blade’s LPS receptors.

Lightning doesn’t flow through the diverter itself, as it would in a solid conductor, but instead jumps from segment to segment through the air gaps. This “stepping” action through ionized air channels greatly reduces the amount of destructive heat and current that would otherwise pass through the blade structure.

Current industrial users include

• Boeing
• Airbus
• Gulfstream
• Embraer
• SpaceX

Instead of trying to outsmart lightning, it gives lightning what it wants: the path of least resistance.

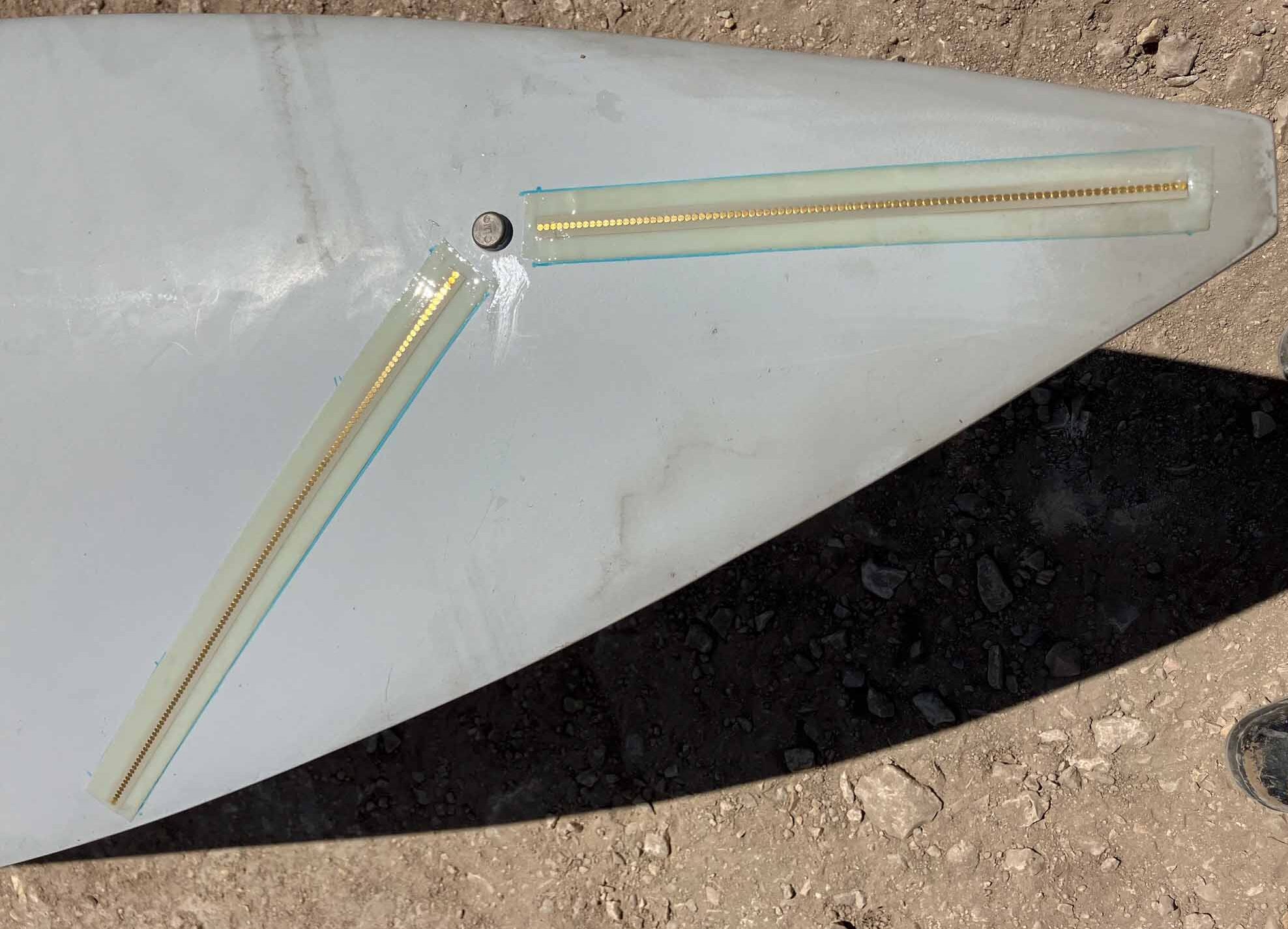

When adapted for wind turbines, StrikeTape installs near the existing tip receptors on both the pressure and suction sides of blades. It doesn’t replace the SafeReceptor system; it makes it work better.

The Industry Leaders Who Have Already Adopted

Word about StrikeTape’s performance is spreading quickly through the wind industry. Major operators are implementing the technology.

US Wind Energy Operators:

• Ørsted
• RWE
• Invenergy
• American Electric Power (AEP)
• BHE Renewables
• NextEra

Turbine Manufacturers:

• Siemens Gamesa
• GE Vernova
• Suzlon

These aren’t companies that take risks with unproven technology. They’re adopting StrikeTape because the technology is proven, and the data is undeniable.

What This Means for Wind Professionals

If you’re managing wind assets, StrikeTape can fundamentally change how you think about lightning risk.

The traditional approach:

• Trust that IEC 61400-24 certification means real-world performance
• Accept 20.4% damage rates as “normal”
• Budget for expensive repairs as a cost of doing business

The StrikeTape approach:

• Reduce damage rates to <4.0% with proven technology
• Save substantial amounts annually on lightning damage
• Install during routine maintenance windows
• Benefit from proven industrial reliability

The Uncomfortable Truth About Industry Standards

Here’s what’s really uncomfortable about this story: the industry has been relying on standards that don’t reflect real-world performance.

IEC 61400-24 testing occurs in laboratory conditions with specific strike parameters. But those conditions don’t match what’s actually happening in the field, where lower-amplitude strikes are causing the majority of damage.

The wind industry isn’t unique in this regard. Many industries have experienced similar gaps between laboratory standards and field performance. (The automobile industry perhaps being the most obvious.)

The difference is that wind energy operates in an environment where every failure is expensive, highly visible, and takes a long time to correct.

The Financial Impact That Can’t Be Ignored

The math is compelling. The real question isn’t whether StrikeTape makes financial sense – it’s how quickly you can implement it.

We’re witnessing a fundamental shift in wind turbine lightning protection. The old paradigm of accepting high damage rates as inevitable is giving way to proven industrial solutions that actually work.

What’s Next for Lightning Protection

Early adopters have experienced significant advantages:

• Reduced lightning damage frequency
• Lower O&M costs
• Improved turbine availability
• Enhanced asset reliability

Meanwhile, operators who rely on traditional protection will continue experiencing the expensive damage patterns that have plagued the industry for years.

1. Reduced lightning damage frequency
2. Lower O&M costs
3. Improved turbine availability
4. Enhanced asset reliability
5. What are our actual lightning damage rates vs. our protection system’s claimed performance?
6. How much are we spending annually on lightning-related repairs and downtime?
7. Can we afford NOT to implement proven solutions that reduce these costs by over 80%

The data from RWE’s West Texas wind farm provides clear answers. The remaining question – if or when lightning protection standards will change to reflect what we now know – cannot be answered by individual operators. In the meantime, it is up to independent wind professionals to act on this data to protect their assets.

Technical Study Information

Key details of the study are below. Readers who need additional information should contact Weather Guard Lightning Tech.

Study methodology: Analyzed operational data from 8 wind farms (907 total turbines) across Texas and Oklahoma, all operating GE Vernova turbines.

Damage classification: Used industry-standard 5-category system, with Categories 4-5 representing structural damage requiring extensive repairs.

Financial calculations: Based on actual repair costs ($10,000-$150,000) plus business interruption costs ($10,000-$150,000) per incident.

Performance improvement: An 80.4% relative risk reduction, representing significant improvement over conventional protection, was seen on the site with StrikeTape installations. Ongoing field studies have StrikeTape reducing damages by 100% in some cases.

For Additional Information

For a full analysis of this study, or for StrikeTape technical specifications, materials testing data and additional information, contact Weather Guard Lightning Tech.

+1 (413) 217-1139

500 S. Main Street, Mooresville, NC 28115

info@wglightning.com

---

References

Kelechava, Brad. Standards Supporting Wind Power Industry Growth, ANSI Wind Power, April 23, 2020. Accessed 8/5/2025 at https://blog.ansi.org/ansi/standards-wind-power-growth-turbine-iec-agma/

Myrent, Noah and Haus, Lili. Blade Visual Inspection and Maintenance Quantification Study, Sandia Blade Workshop October 19, 2022.Accessed 8/5/2025 at https://www.sandia.gov/app/uploads/sites/273/2022/11/EPRI-Blade-Maintenance-Quantification-October19_2022-21.pdf Kaewniam, Panida, Cao, Maosen, et al. Recent advances in damage detection of wind turbine blades: A state-of-the-art review, Renewable and Sustainable Energy Reviews, Vol 167, October 2022. Accessed 8/5/2025 at https://www.sciencedirect.com/science/article/abs/pii/S1364032122006128
